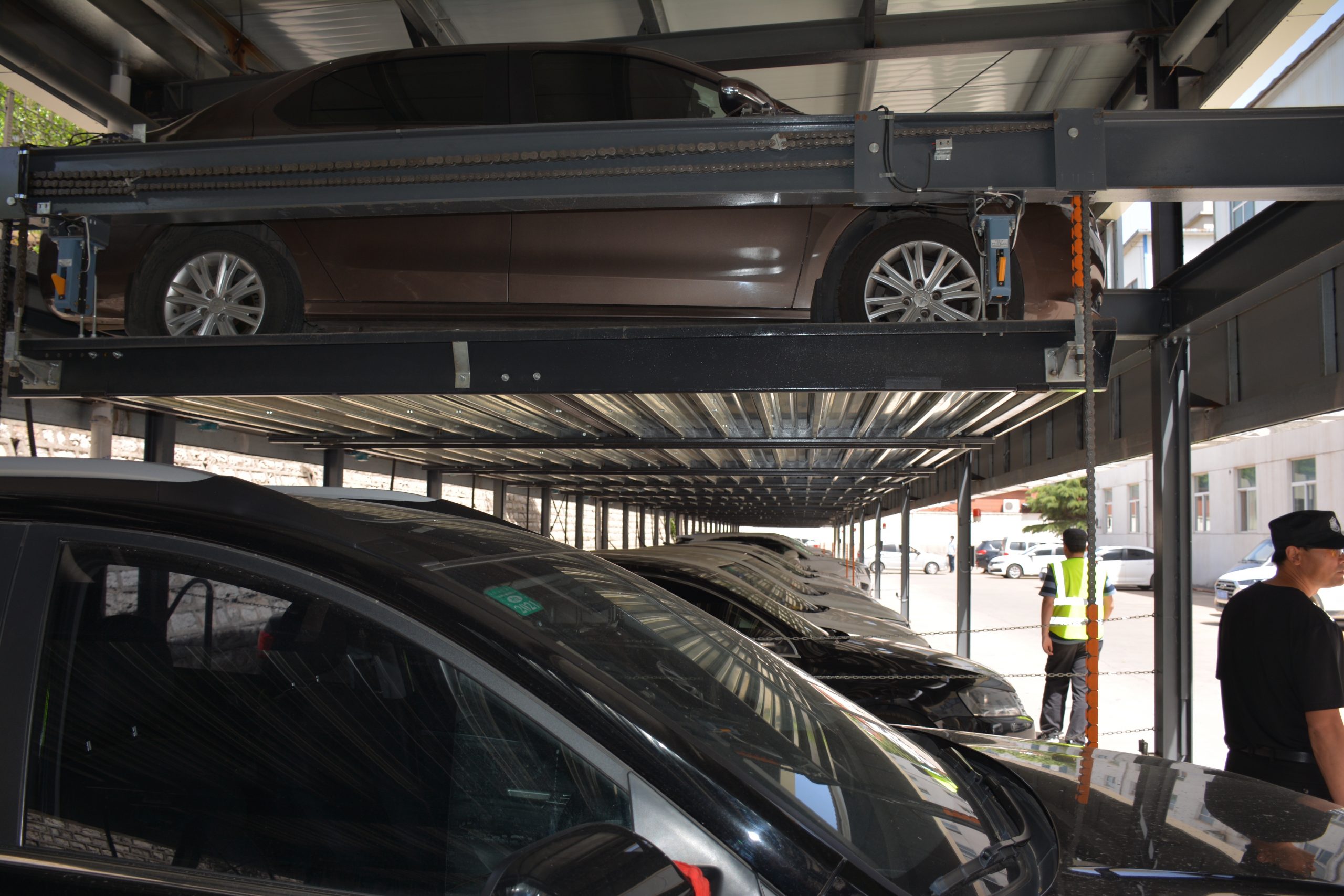

The double-stack puzzle car parking system is a two-level lifting and sliding device. It is an efficient and economical parking solution designed specifically to solve the problem of difficult urban parking. It has a market share of 70% in the Chinese parking equipment market for this model.
This device adopts advanced lifting and sliding movement technology, which can increase parking capacity by 70% in limited ground space, greatly improving parking efficiency.
Product Features of Puzzle Car Parking System
- Double-layer design: The double-layer parking structure effectively utilizes space and maximizes parking capacity.
- Automatic control: equipped with PLC control system, easy to operate, improving user experience.
- Safe and reliable: Made of high-strength H-beam, the structure is stable and equipped with multiple safety protection mechanisms to ensure parking safety.
Technical parameters:
QTY: 2xN-1(N is rows of parking area)
- Load Capacity:?1700kg-2550kg
- Dimensions of cars:?5000mm(L)x1850mm(w)x1550mm(H)
- Certification:?CE MEA ISO
- Drive Mode:?Motor-driven
- Power Supply:?3 phase 5 line
- Operation Voltage:?24V
- Surface Treatment:?Spray painting or hot-dip galvanizing
- Lifting speed: 4m per minute, Sliding speed: 8m per minute
Customized services:
We provide comprehensive customization services to meet the specific needs of different customers, including parking equipment size, color, configuration, etc.,
